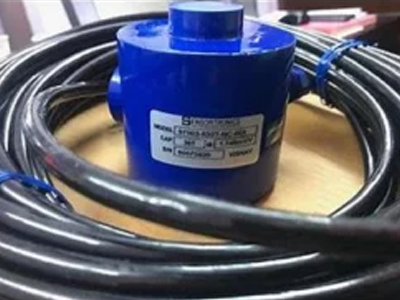

| Model |
97003 |
| Capacity |
30 Ton |
| Material |
Nickel Alloy Steel |
| Ingress Protection |
IP68 |
| Application |
Truck Scales |
| Features |
Hermetically Sealed |
| Output Sensitivity(FS) |
2.0 +/- 0.002 mV/V |
| Combined Error |
0.001 |
| Creep Error (30 minutes) |
0.001 |
| Accuracy Class |
OIML R60 C3 |
| Temperature Effect on Zero |
0.001 |
| Temperature Effect on Output |
0.001 |
| Zero balance |
+/- 1% FS |
| Maximum Safe Overload |
150% FS |
| Ultimate Safe Overload |
200% FS |
| Recommended Excitation Voltage |
9 to 12V DC |
| Maximum Excitation Voltage |
15V DC |
| Input Resistance |
1500 |
| Output Resistance |
1400 |
| Insulation resistance at 50V DC |
>= 5000 M Ohm |
|
Compensated Temperature Range
|
-30 to +70 Deg C |
| Operating Temperature Range |
-20 to +70 Deg C |
| Load Cell Intervals (nLC)/Divisions |
3000 |
| Cable Length |
15 |
